Architecture

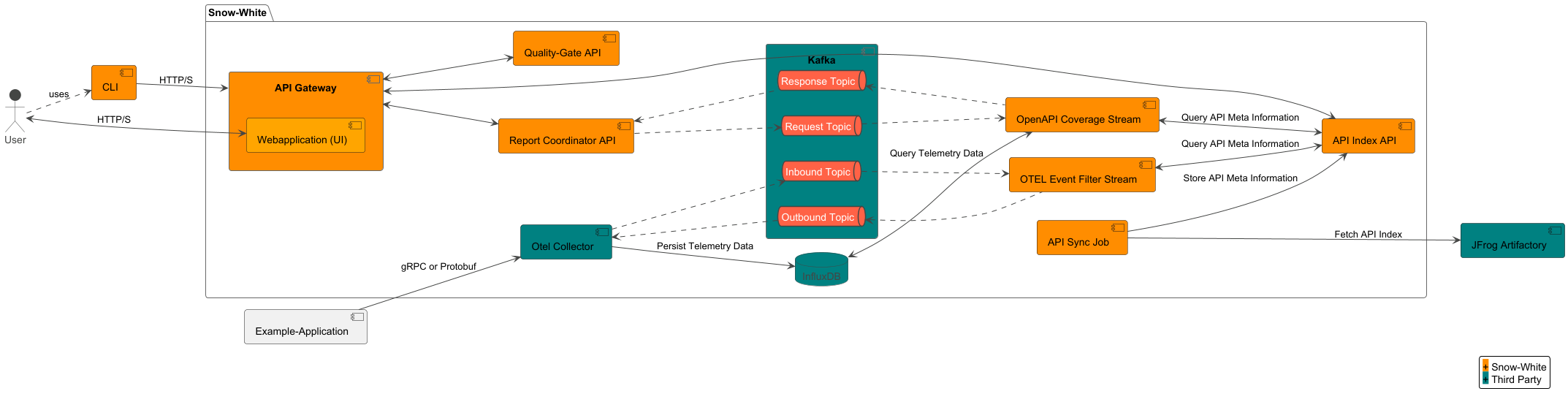

Snow-White follows an event-driven microservices architecture built on Apache Kafka and OpenTelemetry.
It can work with both InfluxDB or Grafana Tempo telemetry backends.

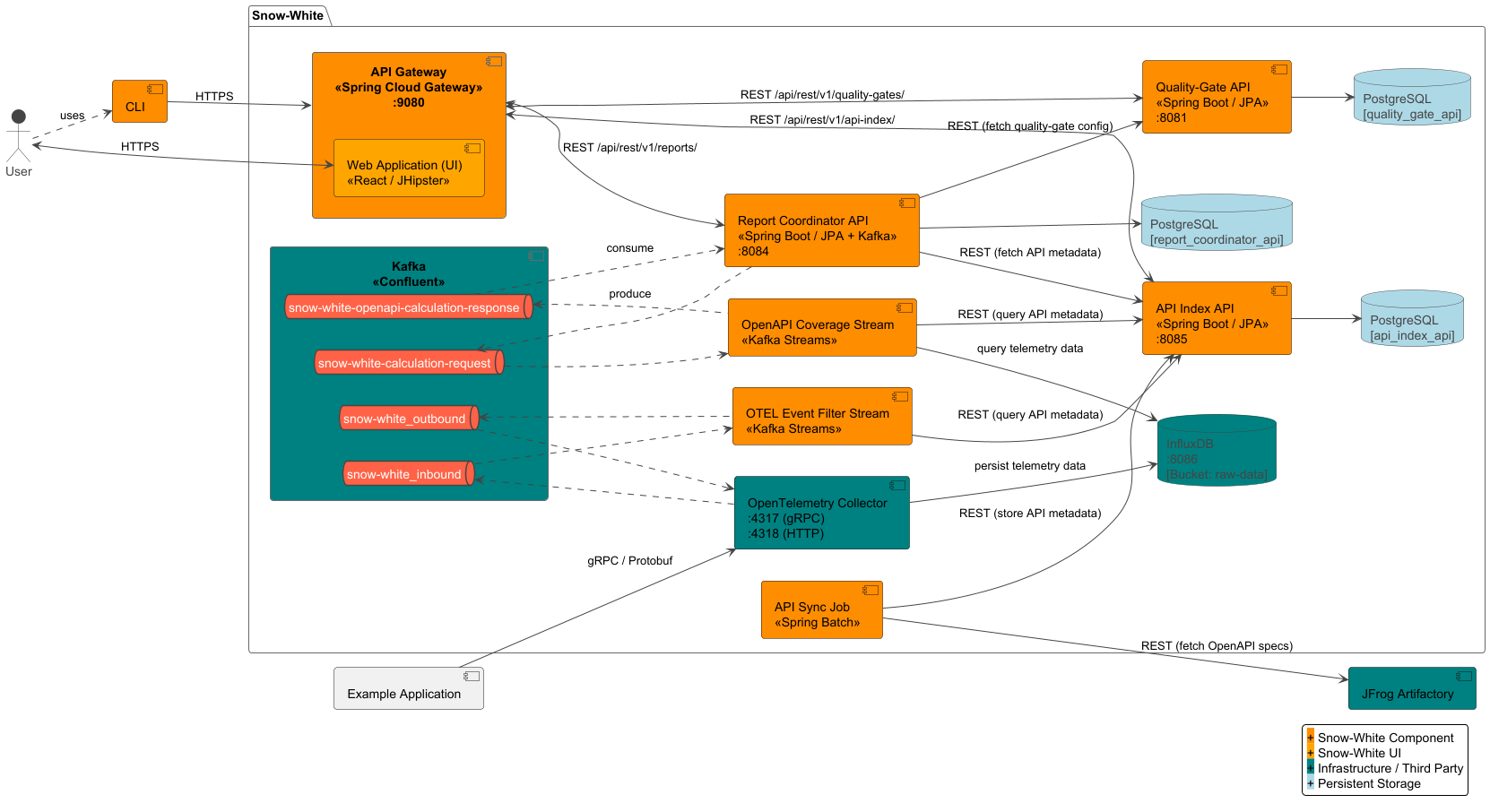

Detailed Architecture
Synchronous UI Communication
All API calls initiated from the web UI travel synchronously through the API Gateway to the target microservice and back. The gateway routes each REST request to the appropriate backend service — API Index API, Quality-Gate API, or Report Coordinator API — and the response is returned directly to the caller. This keeps UI interactions simple and predictable: a request in, a response out, no polling required.
Asynchronous Coverage Calculation
Coverage calculation is deliberately asynchronous.
When the Report Coordinator API receives a calculation request it publishes a message to the snow-white-calculation-request Kafka topic and returns immediately.
The OpenAPI Coverage Stream picks that message up, queries InfluxDB for the relevant telemetry data, and publishes the result to the snow-white-openapi-calculation-response topic, from which the coordinator reads to finalize the report.
This decoupling is an explicit architectural decision: evaluating coverage over large datasets or long lookback windows can take considerable time. Keeping that work off the synchronous request path prevents gateway timeouts, allows the stream processor to scale independently, and lets the coordinator handle many concurrent calculation requests without blocking. The same principle applies to the OTEL Event Filter Stream, which pre-filters inbound telemetry asynchronously before it reaches the coverage processor.
Microservices
Each microservice fulfils a single, well-defined responsibility.
| Microservice | Intent |
|---|---|
| API Gateway | Handles incoming HTTP requests and routes them to internal services. |
| API Index | Manages indexed API specifications. |
| API Sync Job | Periodically fetches API definitions from external sources and stores metadata for reference. |
| OTEL Event Filter | Optional Kafka stream filter — discards telemetry events not applicable to Snow-White before they reach the coverage stream. |
| OpenAPI Coverage Stream | Analyzes coverage of actual API usage against declared OpenAPI specifications. |
| Quality-Gate API | Handles quality gate evaluations and criteria management. |
| Report Coordinator API | Coordinates data aggregation and reporting logic across the application. |
Mapped Ports
| Service | Spring Boot (dev profile) |
Docker / Podman Compose |
|---|---|---|
example-application |
8080 |
8080 |
api-gateway |
9080 |
80 |
api-index-api |
8085 |
8085 |
api-sync-job |
— | — |
otel-event-filter-stream |
— | — |
openapi-coverage-stream |
— | — |
quality-gate-api |
8081 |
8081 |
report-coordinator-api |
8084 |
8084 |
The UI Development Server (used by api-gateway) runs on port 9001.
Additional Services (Docker Compose Only)
| Service | Ports |
|---|---|
| OTEL Collector | 1888, 8888, 8889, 13133, 4317, 4318, 55679 |
| Kafka | 9092, 9094 |
| Kafka UI | 8090 |
| InfluxDB | 8086 |
| PostgreSQL | 5432 |
| Service Interface Repository | 3000 |
